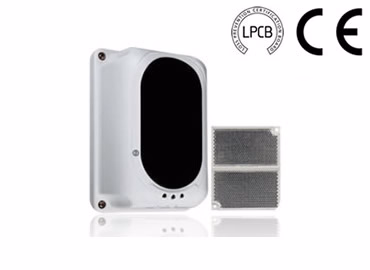

TX7130
Conventional Reflective
Beam Detector
1. Feature and Benefits
EN54-12 Certified
Hassle free alignment, built with digital guide display and laser beam pointing
Employ single-ended design through reflective mirror Four ranges wide monitoring from 8-100 meters via encoder
Three users programing sensitivity adjustment Built-in microprocessor
Self-diagnosis function can monitor for internal faults Automatic compensation for factors weakening received signals, such as dust contamination, positional movement and ageing of the transmitter
Fire and Fault interfacing relays Attractive and pleasing appearance Real User friendly alignment method
The TX7130 has four adjustable operational ranges of between 8 to 20, 20 to 40, 40 to 70 and 70 to 100 meters beside with three adjustable sensitivity setting ranges from 2.6dB, 3.8dB and 5.8dB to meet the specific environmental requirement. The TX7130 works on the principle of reflective infrared beam obscuration. Used in conjunction with a reflector, it will notify the fire alarm panel when the infrared beam is obscured by smoke.
The TX7130 is ideal for use high ceiling and wide areas such as warehouses, large storages, shopping malls, leisure centres, exhibition halls, hotel lobbies, printing houses, garment factories, museums and prisons, as well as places where slight smoke particles or corrosive gas exist.
Conventional Reflective
Beam Detector
1. Feature and Benefits
EN54-12 Certified
Hassle free alignment, built with digital guide display and laser beam pointing
Employ single-ended design through reflective mirror Four ranges wide monitoring from 8-100 meters via encoder
Three users programing sensitivity adjustment Built-in microprocessor
Self-diagnosis function can monitor for internal faults Automatic compensation for factors weakening received signals, such as dust contamination, positional movement and ageing of the transmitter
Fire and Fault interfacing relays Attractive and pleasing appearance Real User friendly alignment method
2. Overview
TX7130 Conventional Reflective Beam Detector has built in Laser beam pointing and Digital guide display for real user friendly alignment method. The Laser beam pointing accurately point the exact location where to mount mirror and with additional digital guide display allows to monitor and guide on the actual light intensity between the mirror and detector which cannot be seen by our naked eye making it more easy and convenient in alignment commissioning.The TX7130 has four adjustable operational ranges of between 8 to 20, 20 to 40, 40 to 70 and 70 to 100 meters beside with three adjustable sensitivity setting ranges from 2.6dB, 3.8dB and 5.8dB to meet the specific environmental requirement. The TX7130 works on the principle of reflective infrared beam obscuration. Used in conjunction with a reflector, it will notify the fire alarm panel when the infrared beam is obscured by smoke.
The TX7130 is ideal for use high ceiling and wide areas such as warehouses, large storages, shopping malls, leisure centres, exhibition halls, hotel lobbies, printing houses, garment factories, museums and prisons, as well as places where slight smoke particles or corrosive gas exist.
 |
 |
 |
